Trommel Screen
Trommel screens separate solid waste by particle size as the material moves through a rotating cylindrical drum. Smaller particles pass through the screen openings, while larger pieces continue toward the discharge end for further sorting or processing. Shaftless trommel screens are suitable for municipal solid waste, landfill stale material, renovation debris, construction waste, industrial waste, and green waste. The screen openings can be customized according to the material and required output size, helping each project separate fines, oversized materials, and recoverable fractions more accurately. A typical trommel screen includes the main frame, screening drum, feed and discharge hoppers, protective covers, inspection access, drive motor, reducer, drum rings, and polyurethane support rollers.
-

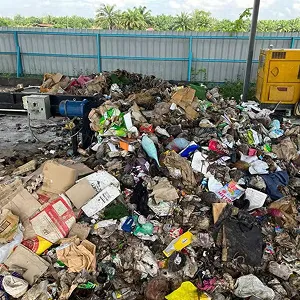

Municipal Solid Waste Treatment -

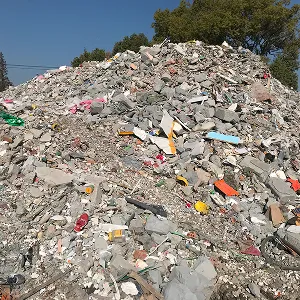

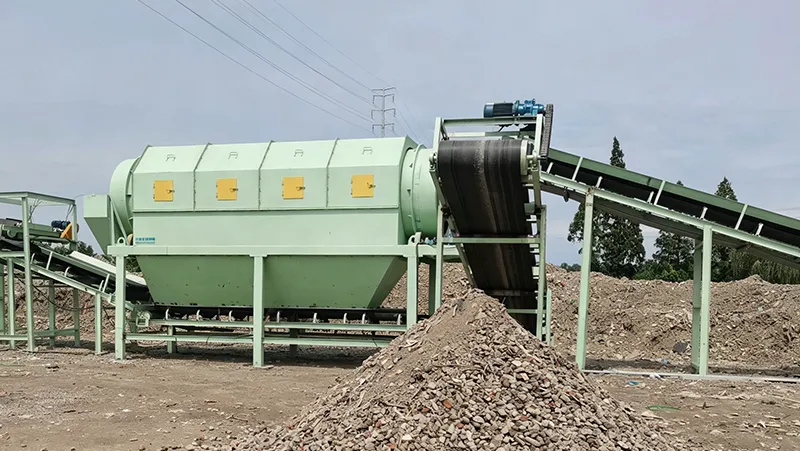

Construction Waste Treatment -

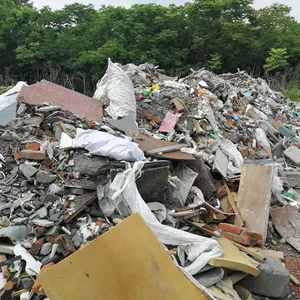

Renovation Waste Treatment -

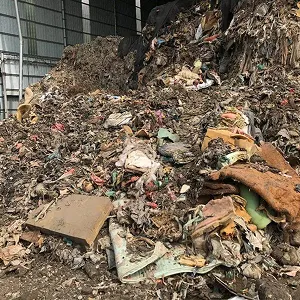

Landfill Stale Waste Treatment
| Model | Drum Diameter (mm) | Effective Screening Length (mm) | Screen Opening Size (mm) | Screen Material | Capacity (t/h) | Power (kW) | Rotation Speed (rpm) |
| 1000 | 3000 | 2–150 (laser-cut or punched openings) | Wear-resistant steel plate / manganese wire mesh | 50–100, depending on material density, screen opening size, and drum speed | 6 | 1-25 | |
| 1200 | 3000 | 8 | 1-25 | ||||
| 1500 | 4500 | 11 | 1-23 | ||||
| 1800 | 6000 | 15 | 1-21 | ||||
| 2000 | 6000 | 22 | 1-21 | ||||
| 2500 | 8000 | 30 | 1-12 | ||||
| 3000 | 8000 | 44 | 1-8 |

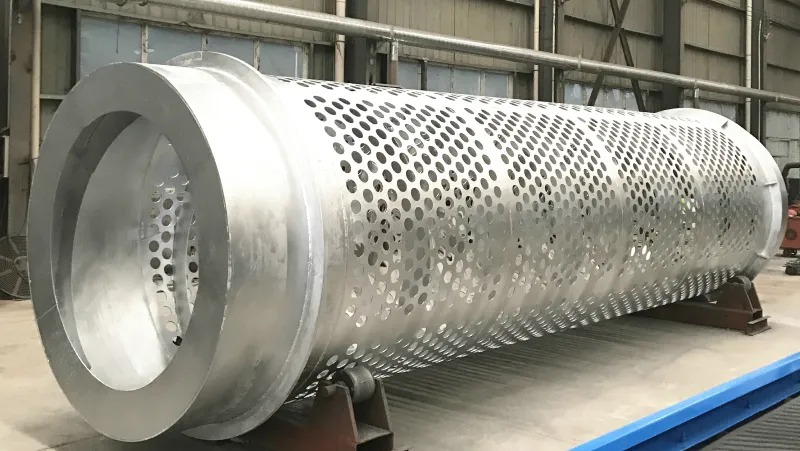

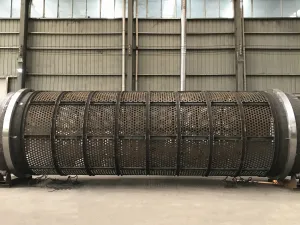

The screen uses a multi-section design, so worn sections can be replaced individually instead of changing the entire screen. The screen can be made from punched or laser-cut wear-resistant steel plate, with opening sizes from 20–150 mm for longer service life.

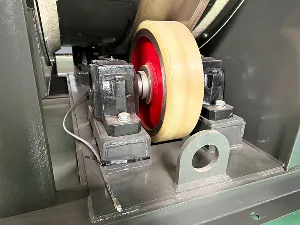

Equipped with polyurethane support rollers, the trommel screen runs with less noise and vibration during long working hours, while reducing wear on the support structure.
External grease lines allow the bearings to be lubricated from easier access points, reducing maintenance work without the need to open the drum assembly for routine servicing.
Positioning rollers help keep the drum in place during rotation, reducing downward movement and supporting safer, more stable operation.
The fully enclosed housing helps contain dust during screening, keeping the working area cleaner and making the trommel screen easier to integrate with dust control requirements.

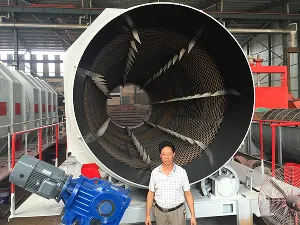

Trommel screen with internal bag opening blades

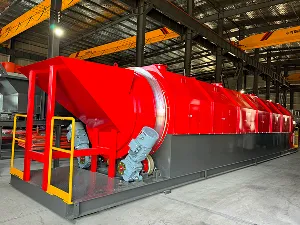

Large trommel screen with SEW motor and reducer
Fully enclosed dust-control trommel screen

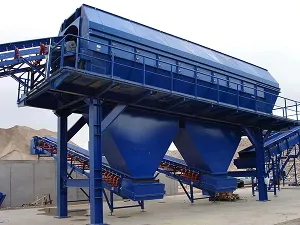

Three-fraction trommel screen (to separate material into three output fractions in one screening process)
Four-fraction trommel screen with siemens motor and SKF bearings
Five-fraction trommel screen (designed to separate material into five output fractions)
