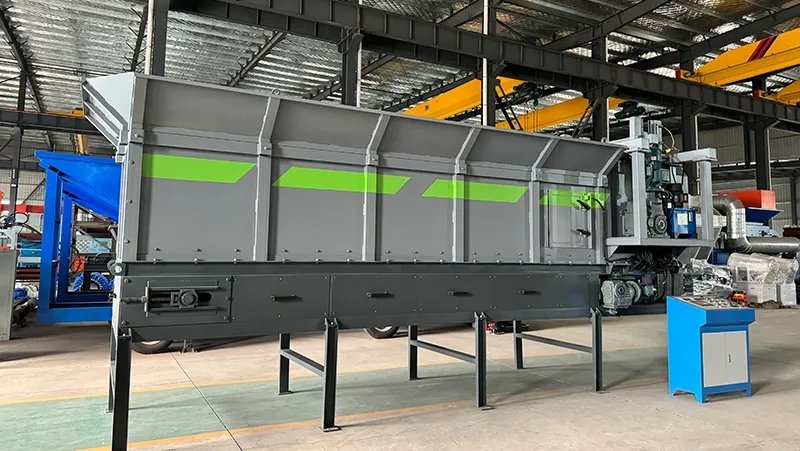

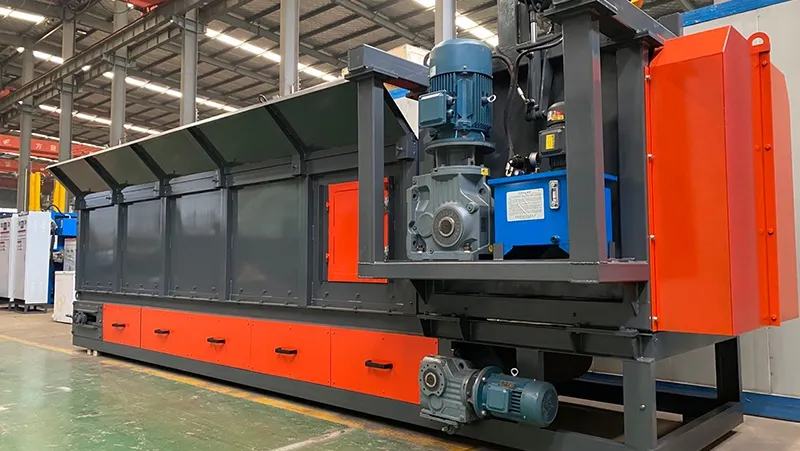

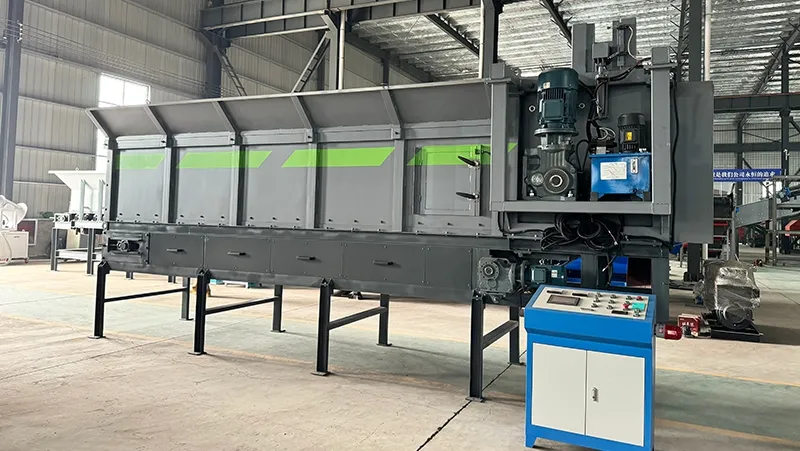

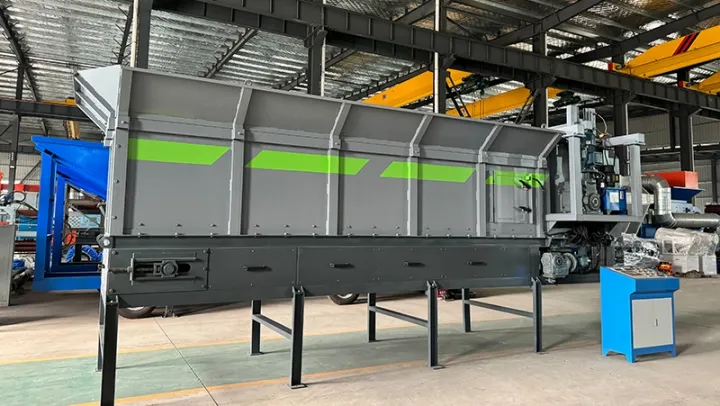

Feeder Bag Opener, Bag Breaker

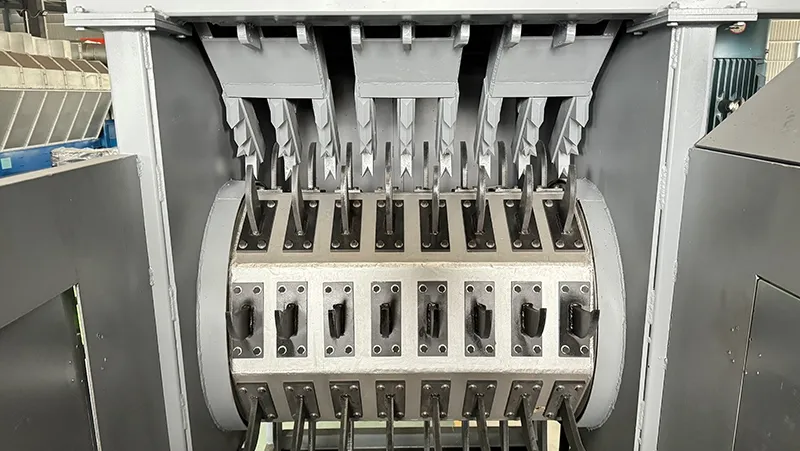

Feeder bag openers are used before sorting when bagged or mixed waste needs to be fed continuously and opened at the same time. After loading, the material moves steadily through the feeding section as rotor blades tear open the waste bags and release the contents. Instead of using separate equipment for feeding, material spreading, conveying, and bag opening, one feeder bag opener prepares the material in a more compact process. It is suitable for municipal solid waste, bagged waste, landfill stale material, mixed refuse, and other materials that need to enter screening or separation in a steady flow.
-
Before Bag Opening -
After Bag Opening
| Model | Feeding Belt Width (mm) | Bag Opening Rotor Length (mm) | Bag Opening Rotor Diameter (mm) | Bag Opening Rate | Feeding Conveyor Power (kW) | Bag Opening Rotor Power (kW) | Hydraulic Lifting Device Power (kW) | Capacity (t/h) |
| 1000 | 1000 | 750 | >95% | 3 | 11 | 2.2 | 5 | |
| 1200 | 1200 | >95% | 4 | 15 | 2.2 | 8 | ||
| 1400 | 1400 | >95% | 5.5 | 18.5 | 3 | 10 | ||
| 1800 | 1800 | >95% | 7.5 | 22 | 3 | 13 |

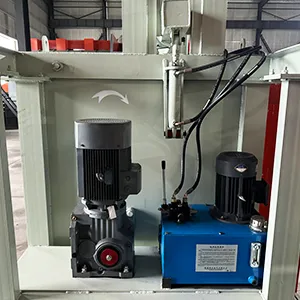

Hydraulic Lifting Blade Assembly
The hydraulic lifting blade works together with the bag opening rotor to tear open waste bags more effectively. Its height can be adjusted according to the material size, allowing the feeder bag opener to handle different waste volumes more steadily and with better processing efficiency.
