Two 100t/d Automated Sorting Lines for MSW Recycling
Key Information
- Location & Year: Zhejiang, China, 2025
- Material: Mixed municipal solid waste, including kitchen waste, plastics, paper, textiles, and inert materials
- Processing Capacity: Two processing lines, each handling 100 tons per day, with a combined capacity of 200 tons per day (200 t/d)
- Application: Pre-treatment of municipal solid waste for volume reduction, harmless processing, and resource recovery, supporting downstream waste-to-energy systems, landfill reduction, and recycling operations
Project Overview
This project consists of two municipal solid waste pre-treatment lines, each with a daily capacity of 100 tons. The complete systems and process design were provided as part of an integrated project delivery.The system is configured to handle local waste conditions characterized by high moisture content and complex material composition. It adopts a fully autom ated process that includes feeding, coarse size reduction, screening, air separation, magnetic separation, and baling, allowing stable operation while improving separation efficiency and waste reduction performance.

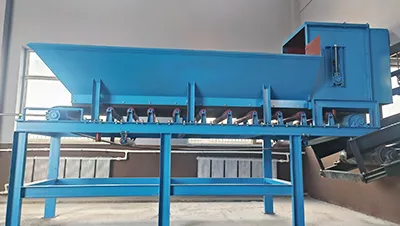

Feeding & Bag Opening System (Feeder-Bag Opener Integrated Unit)

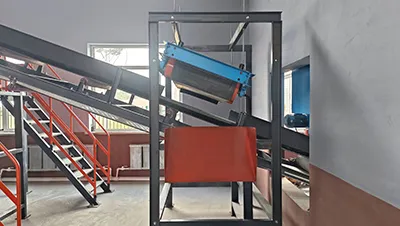

Magnetic Separation System (Overhead Magnetic Separator)

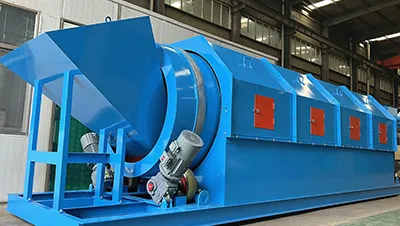

Screening System (Trommel Screen)

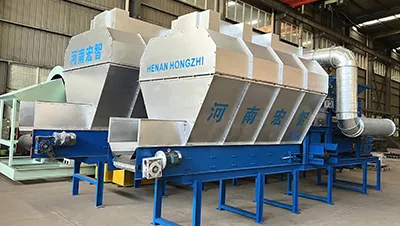

Air Separation System (Integrated Air Separator)
